This part is made up of the following items
- 1 × TES-POWERWALL-3

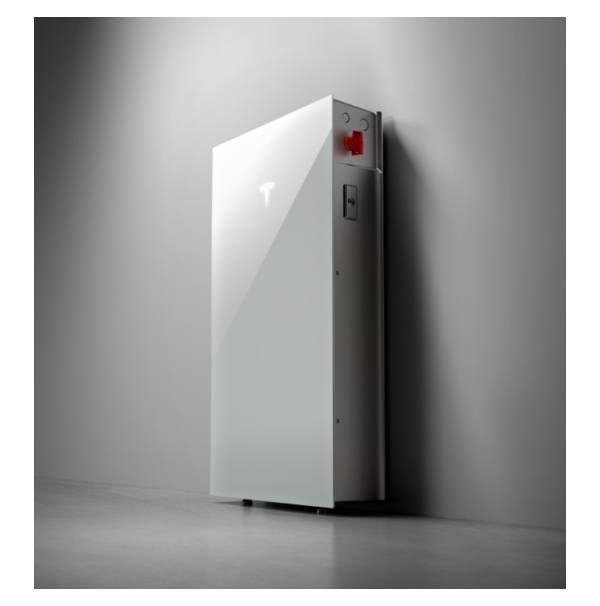

- Tesla Powerwall 3 – 3x MPPT 11.04kW 1PH Inverter with 13.5kWh Battery
- 1x TES-GATEWAY
- Tesla GATEWAY 2 AC Connection Box
- 1x TES-SWITCH-125A22X58 Mersen fuse-holder for 22×58 fuse-links T331079 CMS22 single pole
- 1 × TES-FUSE-100A22X58 Fuse Link 100A Ceramic Cartridge 22 x58mm LFN22M100
General
- Powerwall 3 is a fully integrated solar and battery system designed to accelerate the world’s transition to sustainable energy. Powerwall 3 can store solar or grid energy for later use when the sun goes down or when the electricity prices are high; lowering their electricity bills, reducing their reliance on the grid, and power their homes during a grid outage. Once installed, customers can manage their home energy system using the Tesla App and customize system behavior to meet their energy goals.
- Powerwall 3 achieves this by supporting up to 20 kW DC of solar and providing 11.04 kW AC of continuous power per unit. It has the ability to store up to 13.5 kWh of energy and start heavy loads rated up to 185 A LRA, meaning a single Powerwall 3 can support the power needs of most homes. Powerwall 3 is designed for fast and efficient installations, modular system expansion, and simple connection to any electrical service.
System Technical Specifications
- Model Number: 1707000-xx-y
- Nominal Grid Voltage (Input & Output): 230 VAC
- Grid Type Single phase Frequency: 50 Hz
- Maximum Continuous AC Output Current (Power at 230 V): 16 A (3.68 kW), 21.7 A (5 kW), 26.1 A (6 kW), 30.4 A (7 kW), 34.8 A (8 kW), 39.1 A (9 kW), 43.5 A (10 kW), 48 A (11.04 kW)
- Overcurrent Protection Device: Configurable up to 63 A
- Solar to Battery to Home/Grid Efficiency: 89%
- Solar to Home/Grid Efficiency: 97.5%
- Supported Islanding Device” Backup Gateway 2
- Connectivity: Wi-Fi (2.4 and 5 GHz), Ethernet, Cellular (LTE/4G)
- Hardware Interface: Dry contact relay, Rapid Shutdown (RSD) certified switch and 2-pin connector, RS-485 for meters
- AC Metering: Revenue Grade (+/- 0.5%)
- Protections: Integrated arc fault circuit interrupter (AFCI), Isolation Monitor Interrupter (IMI), Integrated DC Isolator
- Customer Interface: Tesla Mobile App
- Warranty: 10 years
Battery Technical Specifications
- Nominal Battery Energy: 13.5 kWh AC
- Maximum Continuous Discharge Power: Configurable up to 11.04 kW
- Maximum Continuous Charge Power: Configurable up to 5 kW
- Output Power Factor Rating: 0 – 1 (Grid Code configurable)
- Maximum Continuous Current: Configurable up to 48 A
- Maximum Output Fault Current: 10 kA
- Load Start Capability: 185 A LRA (Locked Rotor Amps)
- Power Scalability: Up to 4 Powerwall 3 units supported
Solar Technical Specifications
- Maximum Solar STC Input: 20 kW
- Withstand Voltage: 600 V DC
- PV DC Input Voltage Range: 60 — 550 V DC
- PV DC MPPT Voltage Range: 60 — 480 V DC
- MPPTs: 3
- Maximum Current per MPPT (Imp): 26 A
- Maximum Short Circuit Current per MPPT (Isc): 30 A
Environmental Specifications
- Operating Temperature: –20°C to 50°C
- Operating Humidity (RH): Up to 100%, condensing
- Storage Temperature: –20°C to 30°C, up to 95% RH, non-condensing, State of Energy (SOE): 25% initial
- Maximum Elevation: 3000 m
- Environment: Indoor and outdoor rated
- Enclosure Rating: IP55
- Ingress Rating: IP67 (Battery & Power Electronics)/ IP55 (Wiring Compartment)
- Pollution Rating: PD3
- Operating Noise @ 1 m :< 50 db(A) typical, < 62 db(A) maximum
Compliance Information
- IEC 61000-6-1:2016, IEC 61000-6-3:2020, IEC 62477-1:2022, IEC 62109-1:2010, IEC 62109-2:2011, IEC 62933-5-2:2020, IEC 62619:2022, UL 9540A, UN 38.3, Radio Equipment Directive 2014/53/EU, EN 50549-1:2023, EN 50549-10:2022, G98 Issue 1 – Amd 7:Oct 2022, G99 Issue 1 – Amd 9:Oct 2022, G100 Issue 2 – Amd 2
Mechanical Specifications
- Dimensions: 1099 x 609 x 193 mm
- Weight: 130 kg
- Mounting Options: Floor or wall mount
Backup Gateway 2 Specifications
- Backup Gateway 2 provides energy management and monitoring for solar self-consumption, time-based control, and backup operation. When Powerwall 3 is in Backup mode, Backup Gateway 2 controls connection to the grid, detects outage, and provides backup power.
- AC Voltage (Nominal): 230 V (Line-to-Neutral)/ 400 V (Line-to-Line)
- Feed-In Type: Single Phase, Three Phase
- Grid Frequency: 50-60 Hz
- Maximum Overcurrent Protection Device: 100 A (single-phase service)/ 80 A (2- and 3-phase service)
- Maximum Input Short Circuit Current: 16 kA
- Overvoltage Category: Category III
- AC Meter: Revenue accurate (+/– 0.2 %)
- Compatible Earthing Systems: TN or TT networks
- Distribution boards intended to be operated by ordinary persons (DBO) Type: Type B
- Safety IEC 61439-1, IEC 61439-3
- Operating Temperature: –20°C to 50°C
- Operating Humidity (RH): Up to 100%, condensing
- Maximum Altitude: 3000 m
- Ingress Rating: IP55
- Environmental Category: Outdoor rated
- Wet Location Rating: Yes
- Pollution Degree: PD2
- Dimensions: 585 x 380 x 127 mm
- Weight: 11.4 kg
- Breaker Space (DIN rail): Up to 9 single pole breakers
- Mounting Options: Wall mount
